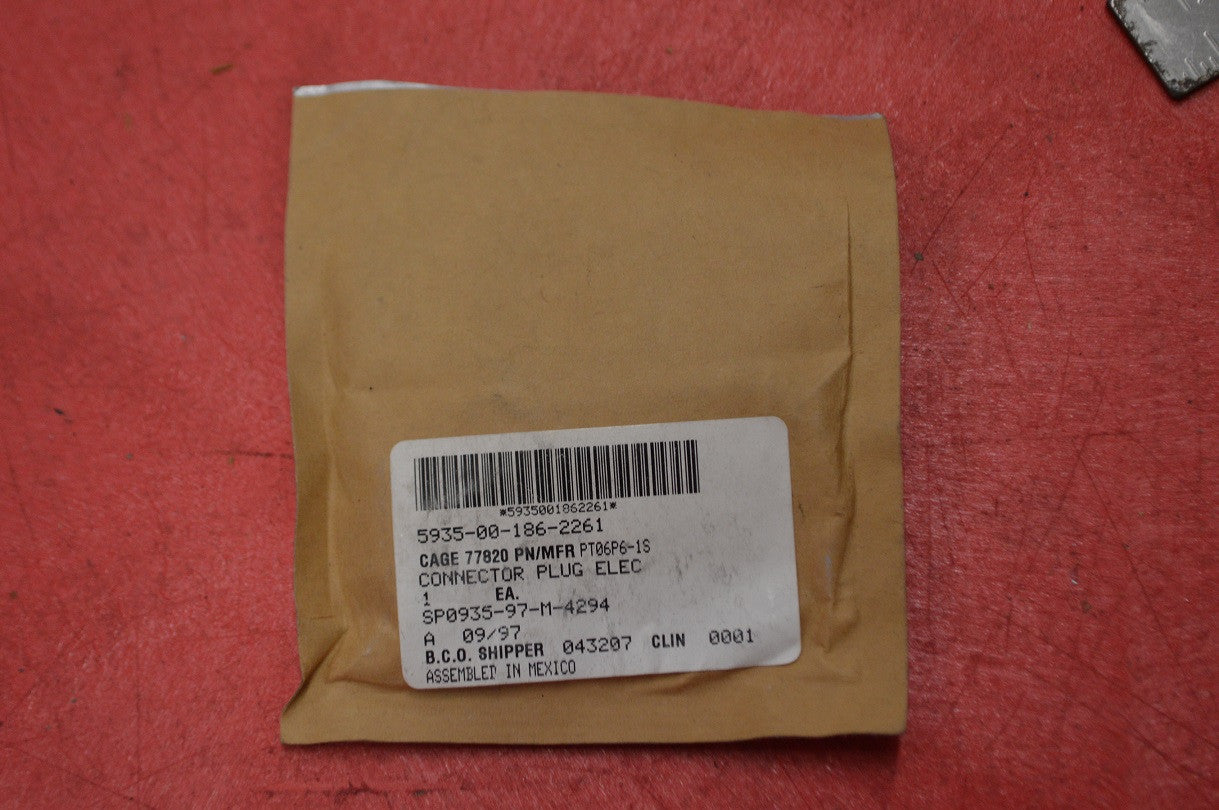

Electrical Plug Connector NSN 5935-00-186-2261
Please fill out the form below for a price quote and availability on this item.
An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified). for items without inserts, see shell, electrical connector.
Technical Characteristics |
|
| Body Style: | Straight shape, internal coupling |
| Connector Cable Strain Relief Method: | Potting type |
| Connector Locking Method: | Bayonet latch |
| Contact Material: | Copper alloy single mating end single contact grouping |
| Contact Position Arrangement Style: | 6-1 single mating end |
| Contact Removability: | Nonremovable single mating end single contact grouping |
| Contact Surface Treatment Document And Classification: | Mil-g-45204 mil spec single treatment response single mating end single contact grouping |
| Contact Surface Treatment: | Gold single mating end single contact grouping |
| Environmental Protection: | Corrosion resistant and moisture resistant |
| Mating End Quantity: | 1 |
| Overall Diameter: | 0.625 inches maximum |
| Overall Length: | 1.526 inches maximum |
| Included Contact Type: | Round socket single mating end single contact grouping |
| Included Contact Quantity: | 1 single mating end single contact grouping |
| Insert Position In Deg: | 0.0 |
| Shell Material: | Aluminum alloy |
| Shell Surface Treatment: | Cadmium and chromate |
| Shell Type: | Potting |
| Polarization Method: | Keyway or multiple keyway |
| Precious Material And Location: | Contact surfaces gold |
| Precious Material And Weight: | 0.005 gold grains, troy |
| Precious Material: | Gold |
| Terminal Location: | Back single mating end single contact grouping |
| Terminal Type: | Solder well single mating end single contact grouping |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
